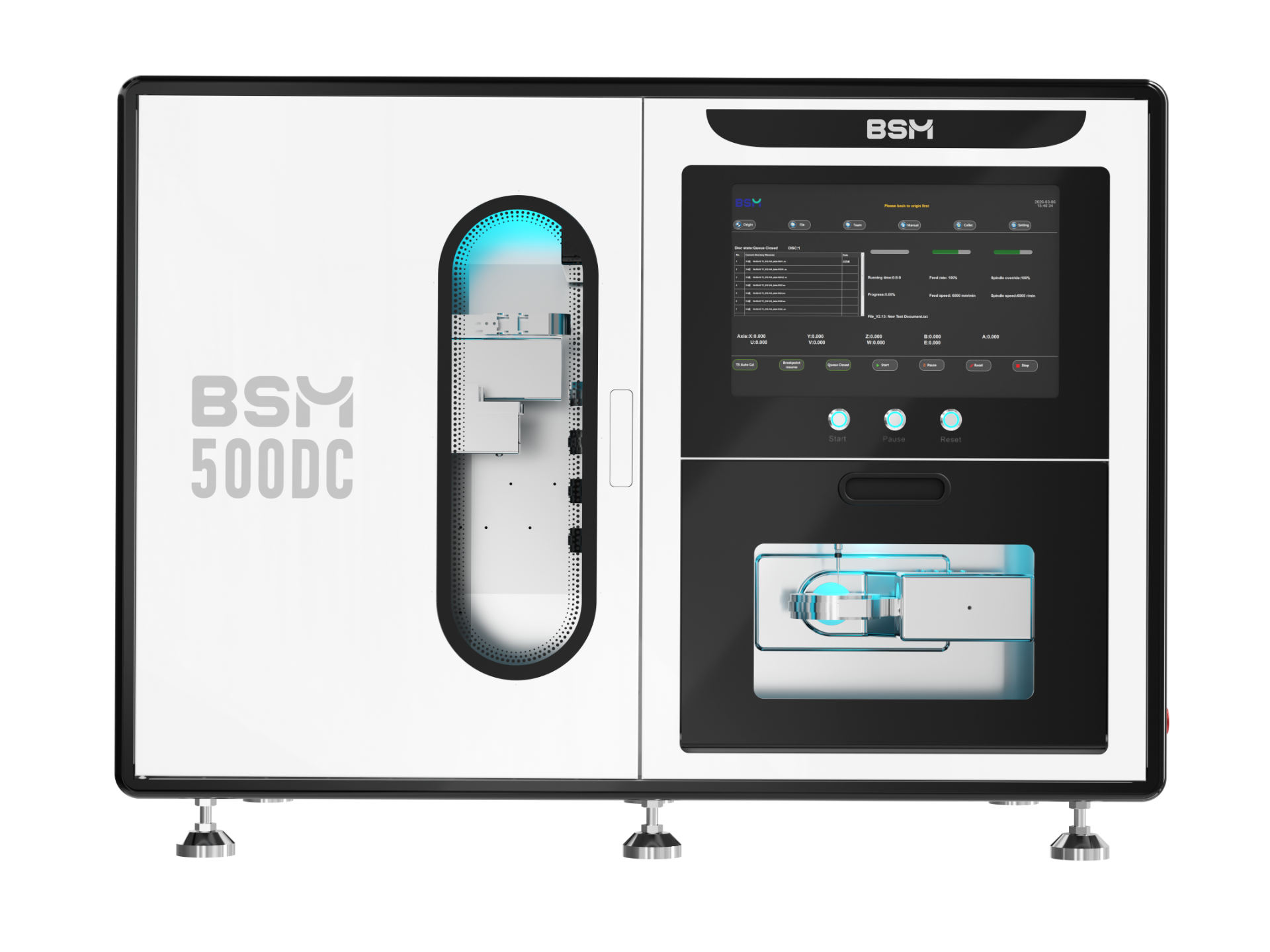

BSM-500DC
Product Introduction
BSM-500DC is the latest intelligent 5-axis automatic disc-changing milling machine developed by Besmile. It features 12 automatic disc-changing units, 11 automatic tool-changing units, and various automatic functions. This enables 24/7 unmanned production, maximizing productivity and profitability. It provides a powerful, efficient, and cost-effective solution for various restoration requirements.

Product Advantages

High Stability

High Stability

60,000 RPM German spindle with 800W power effortlessly guarantees performance

Industrial-grade aerometal gantry structure ensures the stability of 24/7 processing

Large-Angle Milling

Large-Angle Milling

Exceptional Rotary Axis B: -20°~+90°

90°vertical milling for detailed buccal textures on anterior teeth

Easily mills large dental arches, undercuts, and high-angle abutments

High Precision

High Precision

Digital servo system with high resolution

Flawless disc changes with zero-point clamping—accuracy up to 5μm

Higher ROI

Higher ROI

Semi-circular holder increases zirconia disc capacity by 15%

24/7  Uninterrupted Production

24/7 Uninterrupted Production

24/7 Non-Stop: The automatic disc changer holds 12 discs, enabling unattended around-the-clock operation to reduce labor costs.

Easy Monitoring: Built-in webcam and smart control let you check workflows anytime, anywhere.

Technical Data

Technical Data

  • Dimensions(w/D/H)
    1060*760*785mm
  • Weight
    300kg
  • Number of Axes
    5
  • Motor Type
    AC Servo
  • Spindle Power
    800W
  • Spindle Speed
    60000RPM
  • Rotary Axis A
    360°
  • Rotary Axis B
    -20°~十90°
  • Cooling System
    Automatic air-cooling spindle
  • Automatic Disc Change Accuracy
    5um
  • Milling Accuracy
    士0.005mm
  • Air Pressure
    >0.65Mpa
  • Voltage/Power
    220v/1.5KW
  • Number of Automatic Discs
    12
  • Zirconia Ball-mill
    φ4mm*(2mm/1mm/0.6mm)
  • End-mill
    Ф4mm*1mm
  • Resin Mill
    φ4mm*(2mm/1mm)
  • Tool Magazine Capacity
    11
  • Monitor
    Smart LCD Touchscreen
  • Automatic Tool Length Detection
  • Automatic Tool Life Detection
  • Remote Monitoring
  • Processing Status Light Reminder
  • Door Open Auto Pause
  • Remote Assistance
  • Dry Milling
