Product Introduction

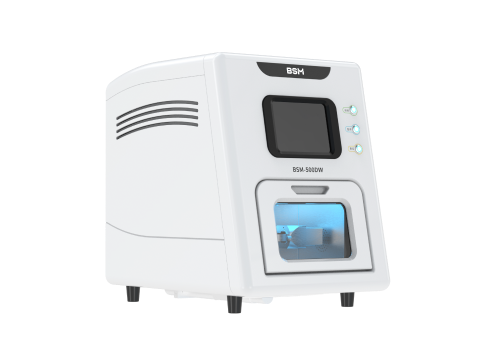

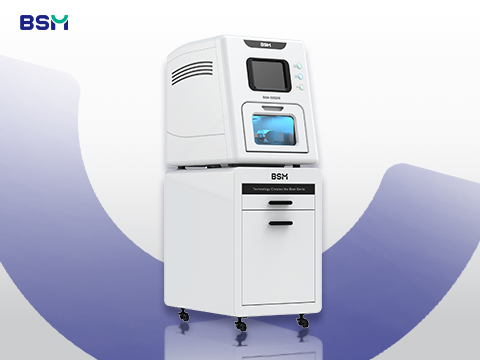

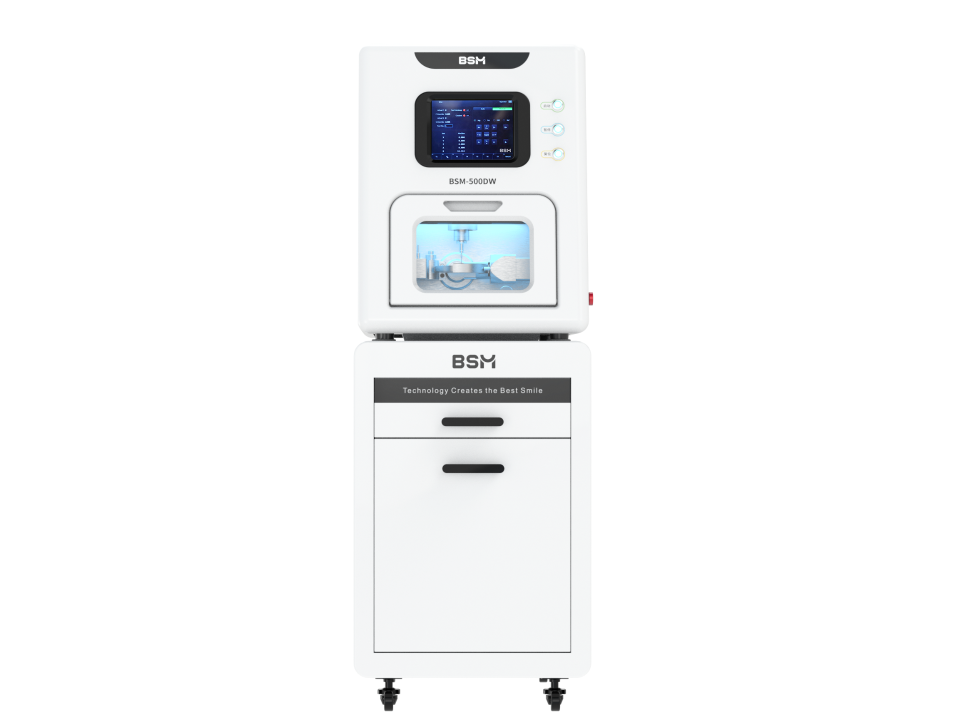

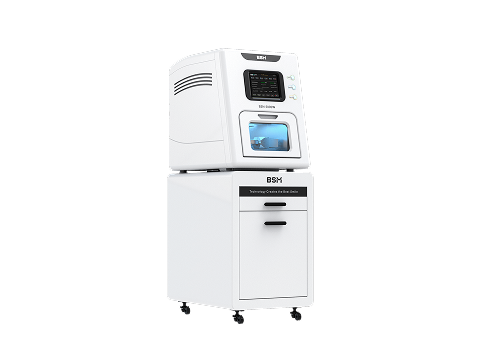

The BSM-500DW is the latest chairside dry & wet 5-axis milling machine developed by Besmile, offering powerful processing performance to provide dental clinics with efficient, comprehensive, and cost-effective machining solutions.

Product Advantages

High Precision

High Precision

Equipped with an AC servo motor and a high-resolution full servo system, the machine delivers exceptional precision with an accuracy of ±0.005μm.

The B-axis tilt angle of ±30° enables precise milling of undercuts.

Exceptional Stability

Exceptional Stability

The 800W German-imported spindle with a speed of 80,000 RPM ensures robust and consistent performance, effortlessly handling metal materials.

Crafted with an integrated aviation-grade aluminum casting and gantry structure, it guarantees 24-hour processing stability.

Equipped with customized imported core components, high-precision ball screw guide rails, and high-precision harmonic reducers, the machine delivers unmatched accuracy and stability.

90° Vertical Process

90° Vertical Process

90° vertical milling precisely replicates natural tooth anatomy and surface texture​

90° vertical milling enables high-precision customized titanium abutments for premium implant cases

Higher ROI

Higher ROI

Exclusive 1/3 holder increases zirconia disc capacity by 20%+​

Quick changes between titanium, glass ceramics, zirconia and more

Smart & User-Friendly

Smart & User-Friendly

Safety auto-pause when opened​

13-bur automatic changer with smart monitoring​

Automation features: break-point resume, power failure protection, alerts, status lights, intuitive UI, and remote control

Technical Data

Technical Data

  • Dimensions(w/D/H)
    480*700*1400mm
  • Weight
    150kg
  • Spindle Power
    800W
  • Spindle Speed
    80000RPM
  • Motor Type
    AC Servo
  • Number of Axes
    5
  • Built-in-burs
    13
  • Rotary Axis
    A:360° B:-30°~+30°
  • Zirconia Milling Bur
    φ4mm*(2mm/1mm/0.6mm) Ball-mill, φ4mm*1mm End-mill
  • Resin Mil
    φ4mm*(2mm/1mm)
  • Glass Ceramic Mill
    φ4mm*(2.5mm/1mm/0.6mm)
  • Metal Mill
    φ4mm*(3.0mm/1.5mm/1.0mm) Ball-mill, φ4mm*3mm Bull-mill
  • Voltage/Power
    220v /IKW
  • Air Pressure
    >0.65Mpa
  • Temperature
    5°C~40°C
  • Milling Accuracy
    士0.005mm
  • Cooling System
    Automatic air-cooling spindle
  • Control Method
    LCD Touch Screen
  • External Control System
    Dust extraction and water pump integration
  • Automatic Tool Length Detection
  • Automatic Tool Life Detection
  • Door Open Auto Pause
  • Dry Milling
  • Wet Miling
  • Remote Assistance
  • Processing Status Light Reminder
