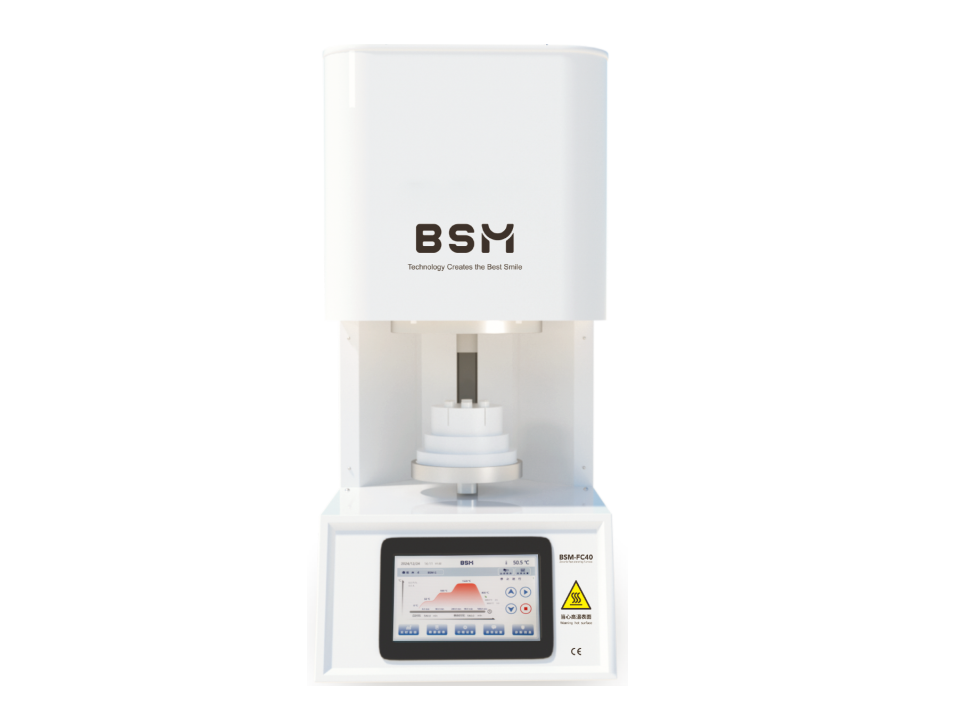

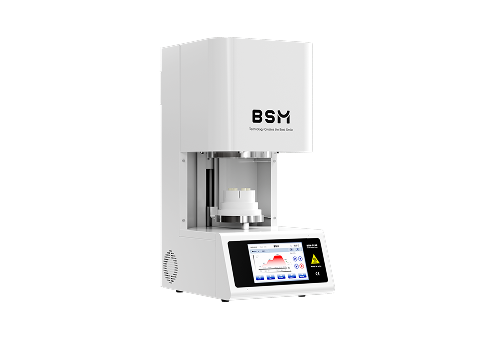

Sintering Furnaces FC40
Product Introduction
The BSM-FC40 is a high-capacity fast sintering furnace designed for performance and precision. With high-purity silicon carbide heating rods, uniform heat distribution, and advanced PID temperature control, it delivers reliable results and accurate color in as little as 90 minutes—ideal for dental labs and chairside restorations.

Features

90-Min Fast Sintering

90-Min Fast Sintering

Optimized cooling technology: completes sintering in as fast as 85 minutes, with full cycles including cooling in just 3 hours.

High-purity silicon carbide rods enable rapid heating at 0–100°C/min.

80-Unit Large Capacity

80-Unit Large Capacity

Ø110mm large furnace chamber with double-layer crucible stacking; sinter up to 80 units at once for maximum productivity.

IoT Cloud Platform

IoT Cloud Platform

Remote monitoring and control via PC or mobile devices.

Unattended operation boosts efficiency.

Upgraded Materials

Upgraded Materials

High-purity refractory crucible delivers exceptional thermal shock resistance, minimizing the risk of cracking.

Advanced insulated furnace chamber with “sandwich” structure for long-lasting heat retention.

Precise Temperature Control

Precise Temperature Control

PID intelligent temperature control, cylindrical chamber design, and circumferential heating arrangement ensure uniform heat distribution.

Versatile Sintering Programs

Versatile Sintering Programs

Fast and standard sintering modes; built-in cleaning and calibration curves.

Supports customized sintering curves with storage for 100+ programs.

Intelligent Two-Stage Cooling Function

Intelligent Two-Stage Cooling Function

BSM-FC40 carries an intelligent two-stage cooling function, which can precisely identify the real-time temperature and automatic lowering of the sintering platform when the temperature drops to 800'C and then when the temperature drops to 500°C, greatly shortening the cooling time and freeing operators from manual monitoring and possible heat burns.

Technical Data

  • Width x Depth x Height
    400mmx590mmx870mm
  • Weight
    80Kg
  • Chamber Size
    φ110mmx90mm
  • Number of Trays
    2
  • Tray Diameter
    φ105mm
  • Heating Element Type
    High-purity Silicon Carbide
  • Power Supply
    220V/50Hz
  • Maximum Tolerable Temperature
    1600°C
  • Control Method
    7'True Color Touch Screen
  • Maximum Number of Program Settings
    100
  • Sensor Type
    High Precision Type B Thermocouple
  • Number of Heating Elements
    4
  • Rated Power
    4KW
  • Operating temperature
    ≤1550°C
  • Heating Rate
    <100°C/min
  • Heating Types
    Fast & Standard Sintering
  • Application Scope
    Zirconia Sintering
