BSM-FM30

Product Introduction
Product Advantages
Technical Data

Product Introduction

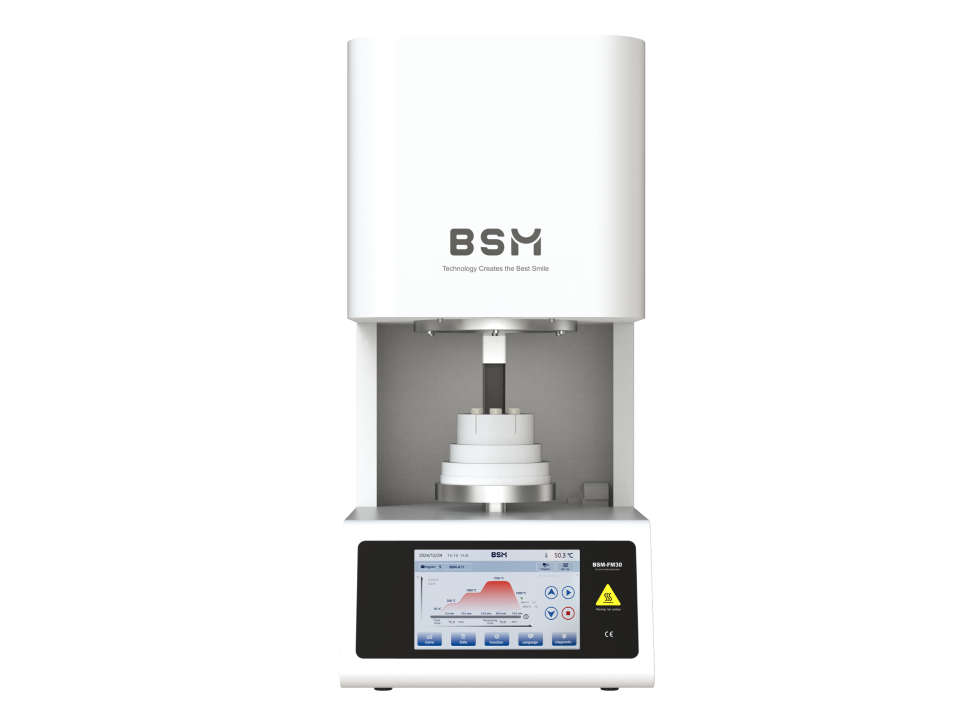

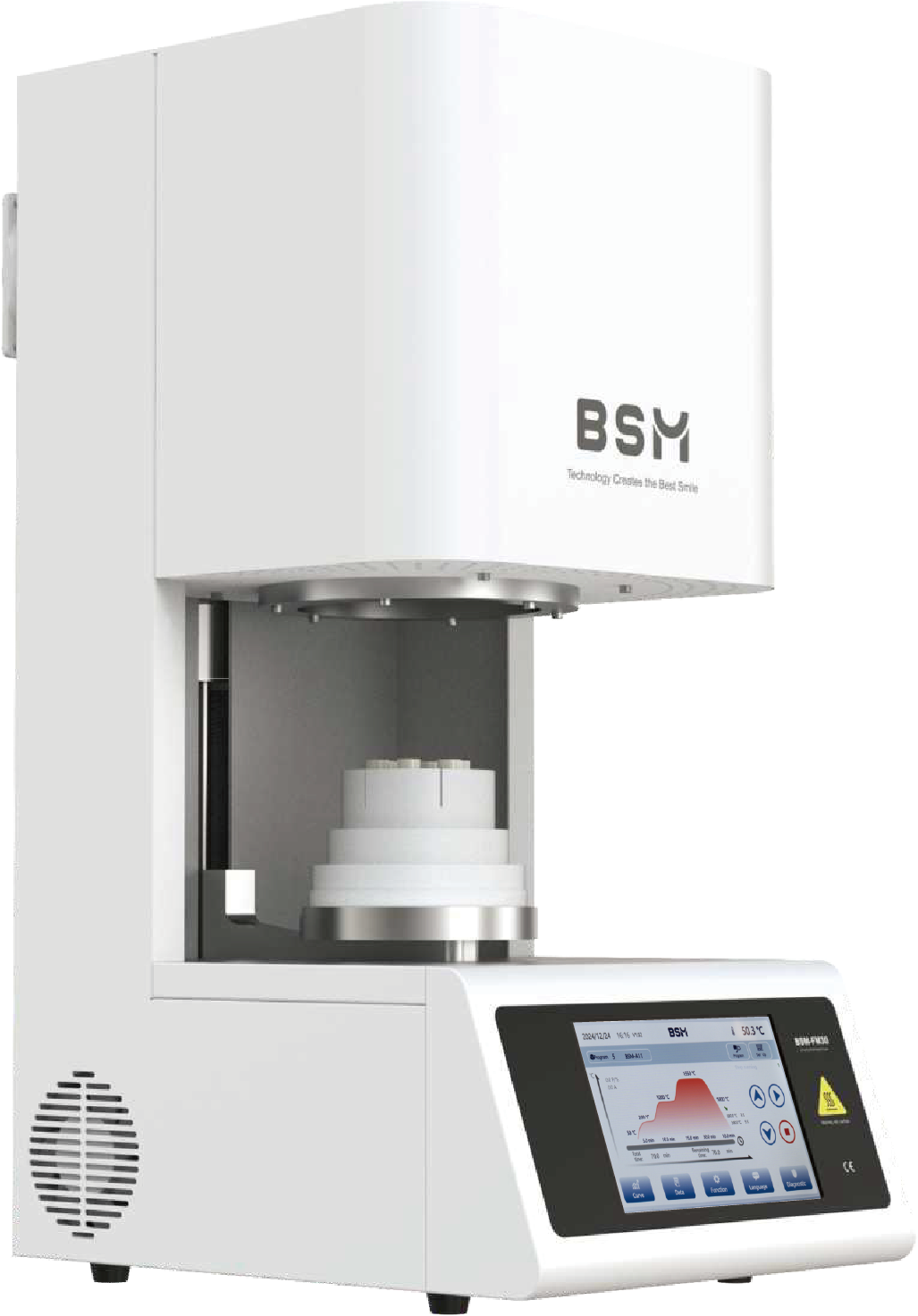

The BSM-FM30 sintering furnace is designed to enhance efficiency with a high-capacity chamber and rapid sintering capabilities, supporting a wide range of zirconia materials. Engineered for precision and reliability, it ensures consistent sintering results for crowns, bridges, and other dental restorations.

Ideal for dental laboratories and CAD/CAM workflows, the BSM-FM30 delivers high-speed, energy-efficient sintering while maintaining the structural and aesthetic integrity of your zirconia restorations.

Product Advantages

80-units Large Capacity: The dual-layer crucible design allows simultaneous sintering of multiple restorations, accommodating ≥80 zirconia units per cycle to maximize production efficiency.

Fast Sintering: Circular-shaped heating design ensures rapid heating while avoiding thermal stress and cracking.

loT Cloud Platform-computer/mobiledevices supported: Supports remote monitoring andoperation via computer or mobiledevices, enabling online and remote management.

Pollution-Free: Equipped with high-purity silicon molybdenum heating elements and reinforced chamber design, guaranteeing an environmentally friendly sintering process.

Precise Temperature Control: The furnace features a circumferential heating element arrangement, securing superior thermal uniformity during high-temperature operations, paired with PID intelligent temperature control.

User-Friendly Operation

True color touchscreen enables intuitive, one-click operation for a seamless and efficient experience.

With storage for up to 100 sintering programs, easily meets diverse dental sintering requirements.

Technical Data

Dimensions(w/D/H)

400mm*590mm*870mm
Maximum Number of Program Setting

100
Weight

85Kg
Application Scope

Zirconia Sintering
Sintering Tray Size

φ105mm*40mm
Chamber Size

Ф110*90mm
Sensor Type

High Precision Type B Thermocouple
Number of Trays

2
Number of Heating Element

4
Heating Element Type

Upgraded Silicon Molybdenum
Rated Power

3KW
Power supply

220V/50Hz
Control Method

7'True Color Touch Screen Operation
Heating Type

Standard/Fast Sintering
Maximum Withstand Temperature

1700°C
Working Temperature

≤1600°C
