Product Introduction

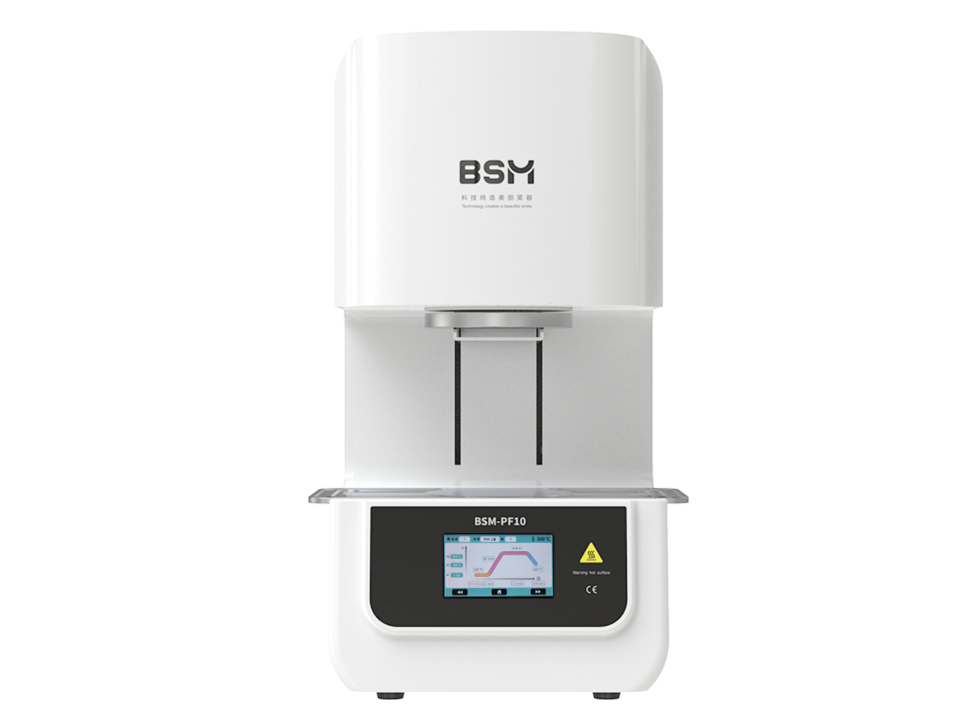

The BSM-PF10 dental porcelain furnace is engineered for efficiency, reliability, and intelligent operation in modern dental workflows. Featuring advanced PID temperature control, premium components, and a range of smart functions, it delivers consistent and flawless results for every restoration.

Ideal for glass-ceramic crystallization, staining, and glazing, the BSM-PF10 is a versatile solution for dental laboratories and CAD/CAM workflows, providing precise thermal control and high-quality finishing for crowns, bridges, and other restorations.

Technical Data

Technical Data

  • Width*Depth*Height
    310*360*610cm
  • Weight
    28kg
  • Firing Chamber Size
    Φ86*50mm
  • Sensor Type
    S-Type Thermocouple
  • Protection 1
    3A
  • Protection 2
    10A
  • Heating Element Type
    Resistance Wire
  • Maximum Vacuum
    ≤-96kpa
  • Power Supply
    220V/50Hz
  • Rated Power
    1.5KW
  • Maximum Withstand Temperature
    1200℃
  • Heating Rate
    ≤120℃/min
  • Monitor
    4.3-inch True Color Touch Screen
  • Internet Connectivity
    Positive
  • Smart Temperature Control
    Positive
  • Mobile Control
    Positive
  • loT Cloud Platform
    Positive
  • Individual Program
    >100(Expandable)
  • Firing Types
    Standard &Two-stage Heating
  • Applications
    Glass ceramic crystalization, glazing,staining and porcelain layering.

Product Advantages

±1℃ Precision Control

±1℃ Precision Control

PID intelligent temperature system with accuracy up to ±1℃

120℃/min Fast Sintering

120℃/min Fast Sintering

Premium heating elements ensure rapid heating up to 120℃/min with consistent firing results

Versatile Sintering Programs

Versatile Sintering Programs

100+ customizable programs with expansion support

Built-in curves for porcelain build-up, staining & glazing, and glass ceramic crystallization

Two-stage heating mode designed for glass ceramic crystallization

IoT Cloud Platform

IoT Cloud Platform

Remote control via PC and mobile devices

Unattended operation for higher efficiency

Remote notifications and online upgrades

User-Friendly

User-Friendly

True-color touchscreen with intuitive interface

Dual side trays for safe and convenient use

Vacuum Firing

Vacuum Firing

Adjustable vacuum values for easier porcelain application

High-power vacuum pump with strong performance, maintenance-free operation, and low noise
