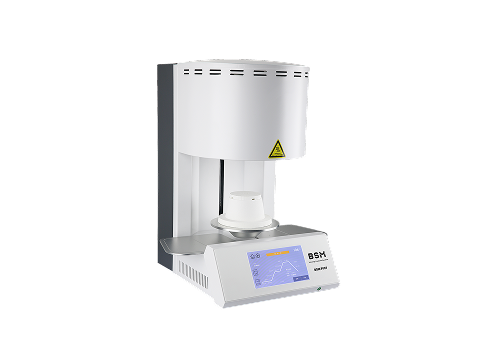

PF07-1
Product Introduction
The BSM-PF07 is a reliable dental porcelain furnace designed for precise firing, stable crystallization, and efficient daily operation. With intelligent temperature control, optimized vacuum performance, and advanced heating technology, it delivers consistent aesthetic results with ease.
Applications: Glass ceramic crystallization, porcelain firing, staining, and glazing.

Product Advantages

Stable Sintering Performance

Stable Sintering Performance

High-purity quartz tube chamber ensures uniform heating and brighter, more translucent restorations.

Dual-valve control system delivers precise colors while reducing machine workload.

Versatile Sintering Functions

Versatile Sintering Functions

Two-stage heating mode designed for glass ceramic crystallization.

In-chamber cooling with temperature compensation.

Exclusive slow cooling (tempering) function.

Energy Saving & Insulation

Energy Saving & Insulation

Double-layer metal chamber provides excellent thermal retention.

Perfect Vacuum

Perfect Vacuum

Silent oil-free vacuum pump ensures consistent vacuum performance.

Intelligent & User-Friendly

Intelligent & User-Friendly

Large touchscreen display.

Built-in 200 editable programs with clear interface.

Technical Data

Technical Data

  • Input voltage/frequency
    220V/50Hz±10%
  • Heating rate
    1~100℃
  • Maximum input power
    1200W + 350W
  • Maximum working temperature
    1150℃
  • Final vacuum degree
    VMAX=97%
  • Temperature constant time
    00:00~120:00min
  • Dimensions (cm)
    32.5*42*55(cm)
  • Package Dimensions (cm)
    54*44*65(cm)
  • The net weight of the vacuum pump
    6.5KG
  • The overall dimensions of the vacuum pump (cm)
    24×14×28(cm)
  • Net Weight
    24.6kg
  • Gross Weight
    29.05kg
  • Available size of the furnace chamber
    Φ85×55(mm)
